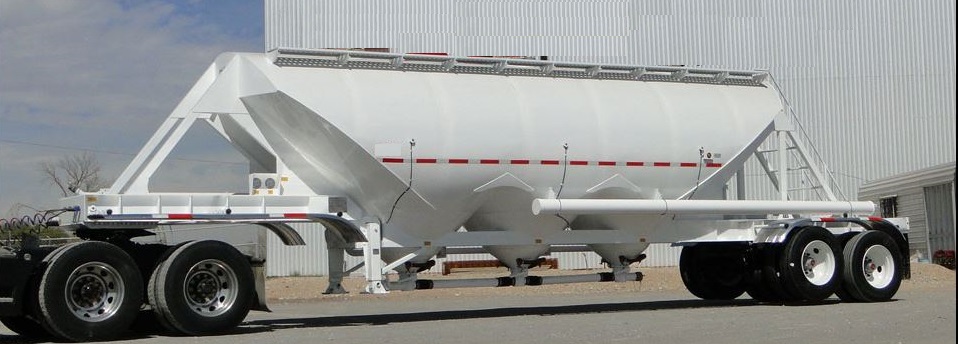

Pneumatic Dry Bulk Trailers
Chassis King’s Pneumatic Dry Bulk Trailers are designed
specifically to maximize a trailer’s lifespan and optimize transportation of
sand, limestone, cement and other dry bulk products. Our experienced engineers
design with a focus on durability and serviceability, while ensuring the
lightest and most cost-effective design. Additionally, we are prepared to
customize any trailer to meet your company’s needs.
For Chassis King its most precious asset is its
personnel, which has been proudly building trailers by more than 35 years using
the highest quality materials and the most advanced machinery. With more than
150,000 sq. ft. of manufacturing space, an ISO 9001-2008 registered facility; Chassis
King is a trailer and truck body manufacturer with the objective to develop
customized transportation solutions with a simple philosophy: Unwavering
quality, On-time delivery, Highest Value and Best-In-Class Customer
Service.

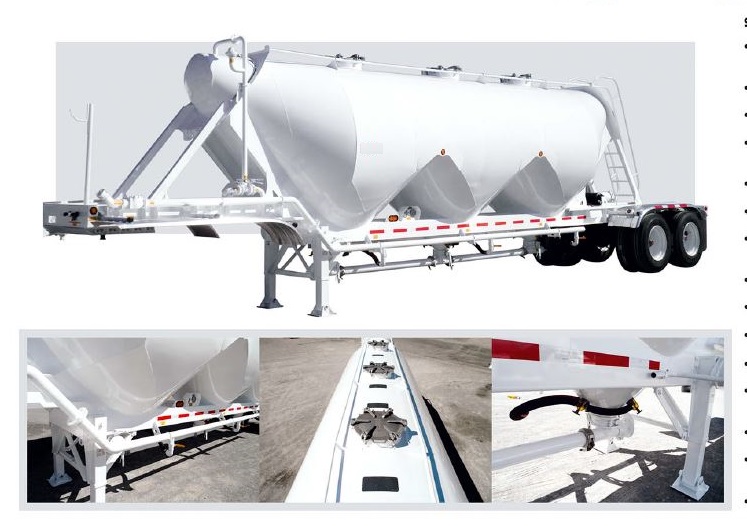

Chassis King’s Dry Bulk Trailers are built with the
highest quality components to meet and exceed your company’s standards;
equipped with Air Ride Hendrickson HT300 Suspension and tested at 23 PSI of
pressure. With guarantee of your complete satisfaction, Chassis King is
committed to world-class customer support, providing customized solutions and
building long-lasting relationships.
|
Main Spec |
|
|
Capacity: |
1,030 cu. ft. |
|
Commodity: |
Transportation of sand, limestone, cement |
|
Design Pressure: |
15 PSI (Pressure and Hydrostatic test performed at 23
PSI) |
|
Material: |
A-36 Carbon Steel |
|
Overall Length: |
42 ft |
|
Suspension: |
Air Hendrickson 30,000 lbs HT300 |
|
Tank |
|
|
Compartments: |
Single |
|
Shell: |
10 Gage Hot-Round sloping interior surfaces with steep,
smooth hoppers, to unload quickly and completely |
|
Welding: |
Inside and Out |
|
Fittings |
|
|
Outlet: |
Three (3) hoppers at 45° slope |
|
Shut Off: |
External |
|
Chassis |
|
|
Axles: |
Two (2) Integrated of 30,000 lbs. |
|
Brakes: |
ABS 4S/2M |
|
Bumper: |
4″ X 4″ tube per DOT |
|
Frame: |
Full Length 1/4″ Formed |
|
Landing Legs: |
2 speed Heavy Duty |
|
Tires: |
11 X 24.5 R |
|
Upper Coupler: |
Adjustable King Pin Plate |
|
Wheels: |
10 Hole Steel Disc Hub Pilot |
|
Access |
|
|

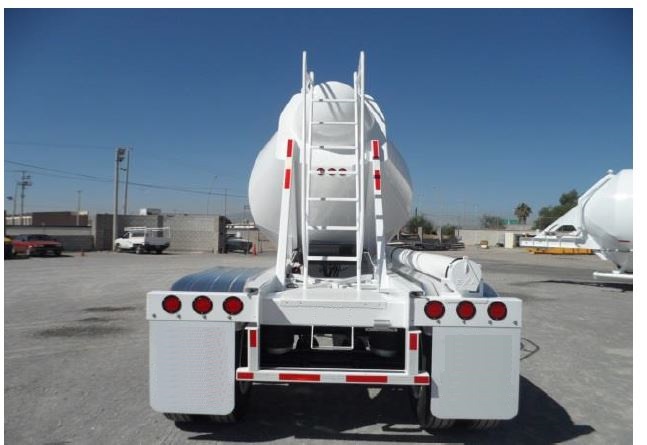

Ladder: |
At rear with handrails |
|
Manways: |
Three (3) on top |
|
Coating |
|
|
Lining: |
Best in industry lining: all surfaces blasted; coated
internally with 10-15 mils thick epoxy liner; coated externally with 4-6 mil thick
epoxy primer and polyurethane top coat |
|
Paint Prep: |
All surfaces blasted |
|
Features |
|
|
Fenders: |
Aluminum in front and rear |
|
Level indicator: |
Two (2) Gauges, located on the side and front |
|
Lights: |
Recessed LED lighting per DOT |
|
Mud Flaps: |
Two (2) Chassis King Anti Sail |
|
Options |
|
|
Multiple configurations: |
A wide variety of discharge options, loading lines,
piping arrangements, and multiple compartments |
|
Paint Color: |
Available in a variety of different colors |
|
Suspension: |
Spring suspension |
