Frac Tank

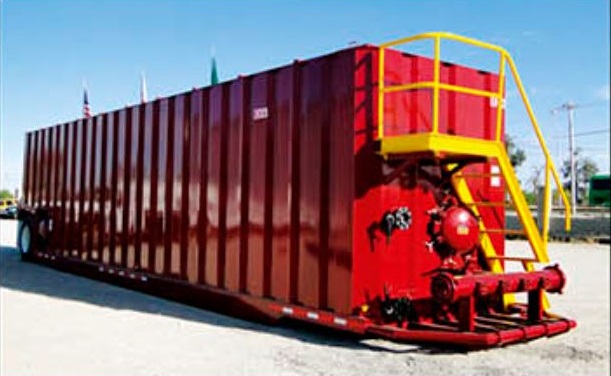

Chassis King frac tank typical use for plant processes, industrial, construction, commercial and oil field applications, pipeline projects, sewage plant outages, drilling chemical storage.

“V” bottom and round bottom floor designs for easy cleanout. Tanks can be manifolded together for large projects.

Capacity:

450 BBL (18,900 gal) to 500 BBL (21,000)

Height:

8' 6" – 11' 3" depending on model (grade to roof deck) Note: protrusions above roof deck include nozzles, manways, P/V valve and handrails

Width:

8’ 0” or 8’ 6”

Length:

40’ 0” – 50’ 0” depending on model

Weight:

Oil Field Frac Tank: 18,000 lbs (est); Fixed Axle: 24,500 lbs – 34,000 lbs

FEATURES

 Valves:

4" butterfly valves, typically (2) on the front and (1) on the rear. Number and size can vary depending on tank model.

Relief Valve:

Pressure: 16 oz/in2; Vacuum: 0.4 oz/in2; Not on all models.

Manifold:

Some models available with integral manifold headers. All others are manifold-capable.

Interior Lining:

Chemical resistant coating

Clean Out:

All tanks have either a v-bottom or round bottom.

Access:

Typically fitted with 22" manways on top, front and side of tank. Number varies.

Material of Construction:

1/4" ASTM A36 carbon steel

Quality/Safety Features:

QMS inspections on a scheduled basis. Staircase to top. Pressure/vacuum valve.
