Tandem Axle Drop Frame ISO Tank Chassis

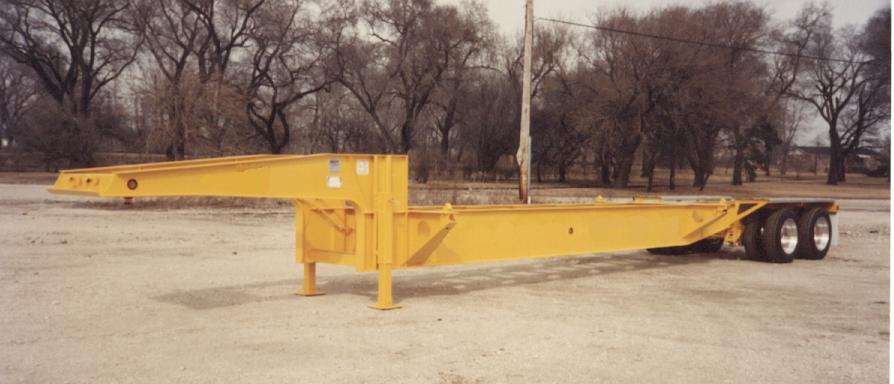

Tandem Drop Frame Tank Chassis

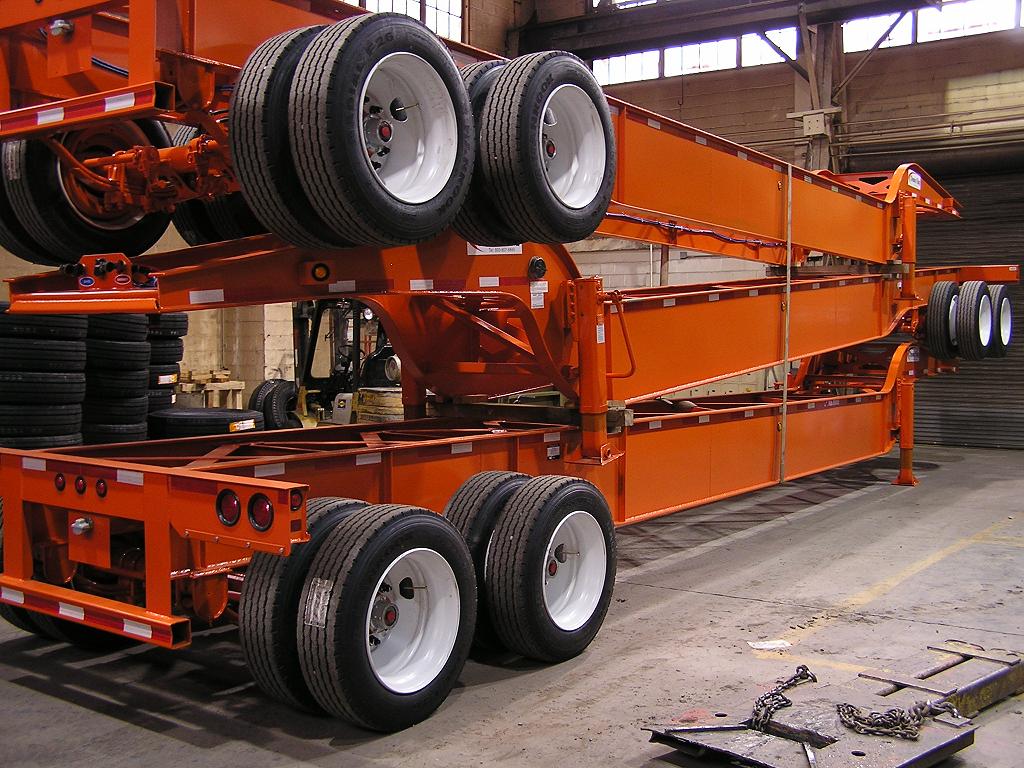

Stack of Tandem Drop Frame Tank Chassis

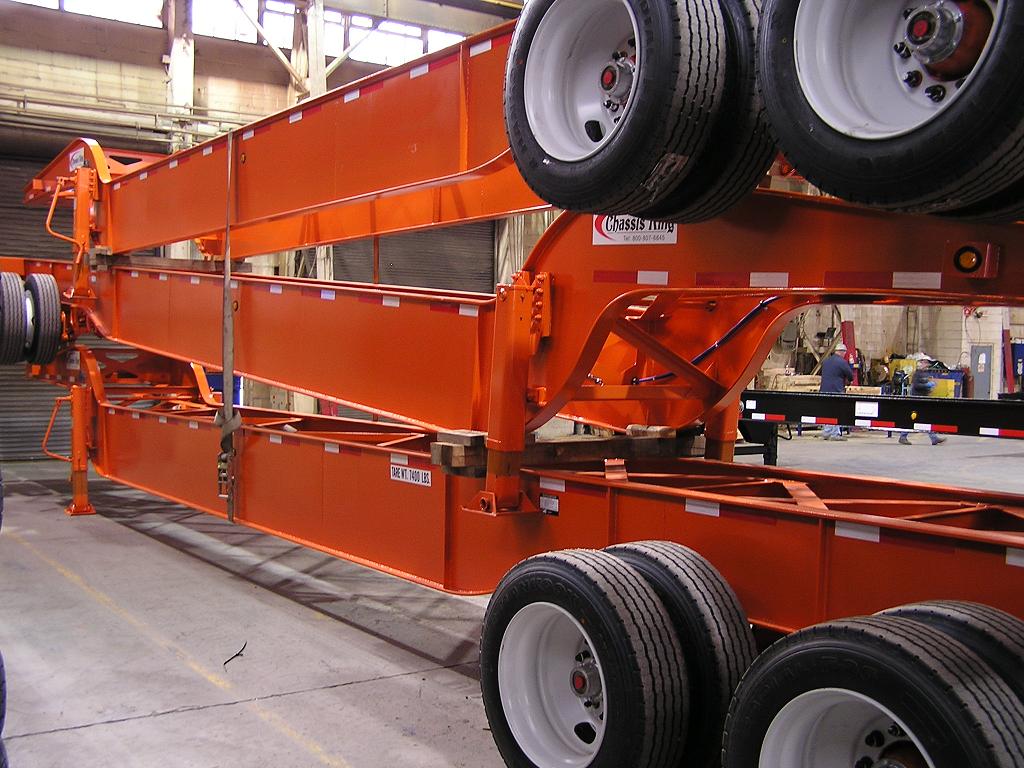

Stack of Tandem Drop Frame Tank Chassis
Drop frame tank chassis with tandem axle centers of 49in set up to carry one 20ft ISO tank rear of drop. Low rear deck height for stability and safety.
Tank chassis is designed and built according to Association of American Railroads (AAR), Federal Motor Vehicle Safety Standards (FMVSS), International Standards Organization (ISO), American National Standards Institute (ANSI), Department of Transportation (DOT), American Bureau of Shipping (ABS), Society of Automotive Engineers (SAE), and Truck Trailer Manufacturers Association (TTMA) standards.
Standard components include spring suspension, 255/70R22.5 radial tires on 10-hole disc wheels, 2 speed landing legs, and ABS. Fenders, aluminum wheels and hubs, and air ride are some of the options
Stacked 3 high for power only transport
43 Foot Tandem Axle Tank Chassis Specifications: | |
Overall Length: | 43’-3” |
Overall Width: | 96” |
King Pin Location: | 15" |
Coupler Height: | 48" |
Frame Height: | 41.5” at container |
Tare Weight: | 7,800 lbs |
Main Rails: | Fabricated high strength steel main beams |
Landing Gear: | Two-speed mechanism and square leg tubing with 10” x 10” low profile sand shoes |
Suspension: | Hutch with Two Leaf Springs |
Axles: | Two axles of 5” round and 22,500 lb beam capacity each; 16.5 x 7-inch Q brakes; automatic type slack adjusters |
Axle Centers: | 49" |
Brake System: | Meritor Wabco 2S/1M Anti-lock Braking System; 30/30 Spring brake chambers |
Tires / Wheels | 255/70R22.5 on 10-hole disc wheels |
Lift Kit: | Lift ready but kit is optional |
Electrical: | 12 Volt with plug type connectors, 7-way plug, sealed wire harnesses and lights |
Twist Locks: | Cast steel to engage ISO corner castings |
Paint: | Commercial sandblast, primer, and high quality paint system |
Other: | Conspicuity Tape, Bumper, 24 x 30 Mud Flaps, Fenders |
