Hi-Lo Drop Frame ISO Tank Chassis

Product Documents:     Click for 44ft Hi-Lo Tank Chassis Flyer

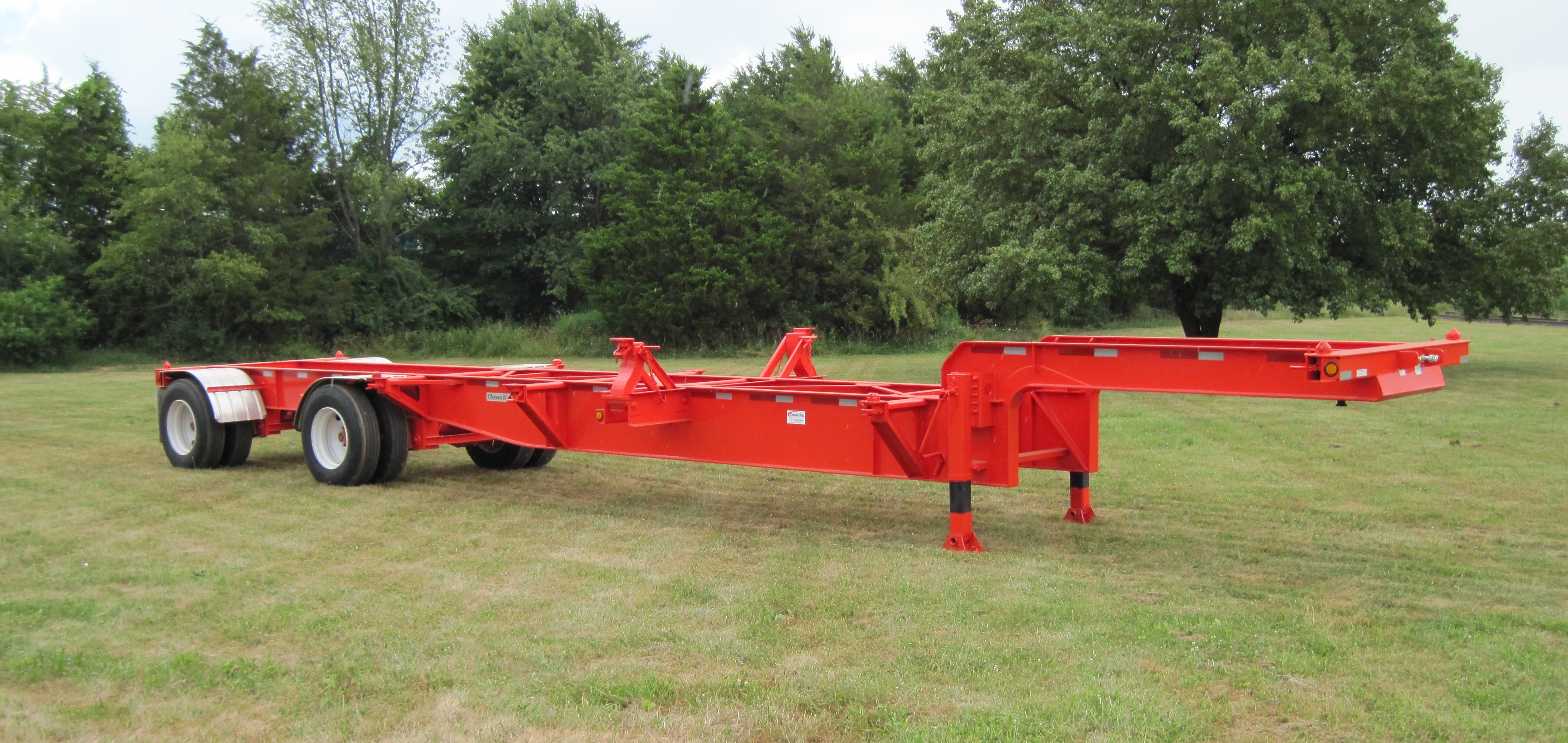

44ft Hi-Lo Drop Frame Tank Chassis
44ft Hi-Lo Drop Frame Tank Chassis

Our 44ft Hi-Lo Drop Frame Tank Chassis is not just an add-on bolster that you install on a standard tank chassis.  Rather, it is a tank chassis specifically designed to transport two empty 20ft ISO tank containers in addition to a loaded one.  With a robust frame tipping the scale at 9,700 lbs, 25k axles, and air suspension, you can rest assure that this tank chassis will outlive its half siblings.  Not to mention that its 102" width provides for greater stability.

Chassis is designed and built acccording to Association of American Railroads (AAR), Federal Motor Vehicle Safety Standards (FMVSS), International Standards Organization (ISO), American National Standards Institute (ANSI), Department of Transportation (DOT), American Bureau of Shipping (ABS), Society of Automotive Engineers (SAE), and Truck Trailer Manufacturers Association (TTMA) standards.

Low profile tires on 10-hole hub piloted disc wheels, air suspension, and flip-up type type twistlocks are all standard.  The chassis is lift ready with lift kit optional.  Other options include full width decking, and aluminum wheels and hubs.

Chassis can be stacked up to 3 high for power only transport

44 Foot Hi-Lo Tank Chassis Specifications:

Overall Length:

44'

Overall Width:

102”

King Pin Location:

18"

Frame Height:

41.5” at container

Axle Centers:

109"

Tare Weight:

9,700 lbs

Main Rails:

Fabricated high strength steel main beams

Landing Gear:

Two-speed mechanism and square leg tubing with 10” x 10” low profile sand shoes

Suspension:

Air Suspension

Axles:

Two axles of  5” round and 25,000 lb beam capacity each; 16.5 x 7-inch Q brakes; automatic type slack adjusters

Brake System:

Meritor Wabco 2S/1M Anti-lock Braking System;  30/30 Spring brake chambers

Tires / Wheels

255/70R22.5 tires on 10-hole disc wheels

Twist Locks:

Combination of retractable, and flip-up type for a total of 12x

Electrical:

12 Volt with plug type connectors,  7-way plug, sealed wire harnesses and lights

Paint:

Commercial sandblast, primer, and high quality paint system

Options:

12” Front lift kit, LED lights, Fenders

Other:

Conspicuity Tape, Bumper, 24 x 30 Mud Flaps
