Steel Flatbed Trailers
In addition to steel main I-beams, this rugged steel/wood flooring construction features structural steel support in critical stress areas, crossbracing, and siderails resulting in a heavy duty, reliable, and durable flatbed trailer. The main rails have a capacity of 80,000 lb evenly distributed and a camber built in to eliminate sagging under heavy loads. For heavier applications, a 100,000lb frame rating package can be offered.

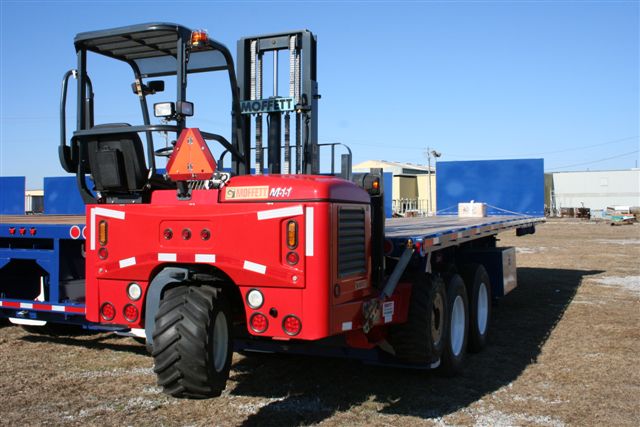

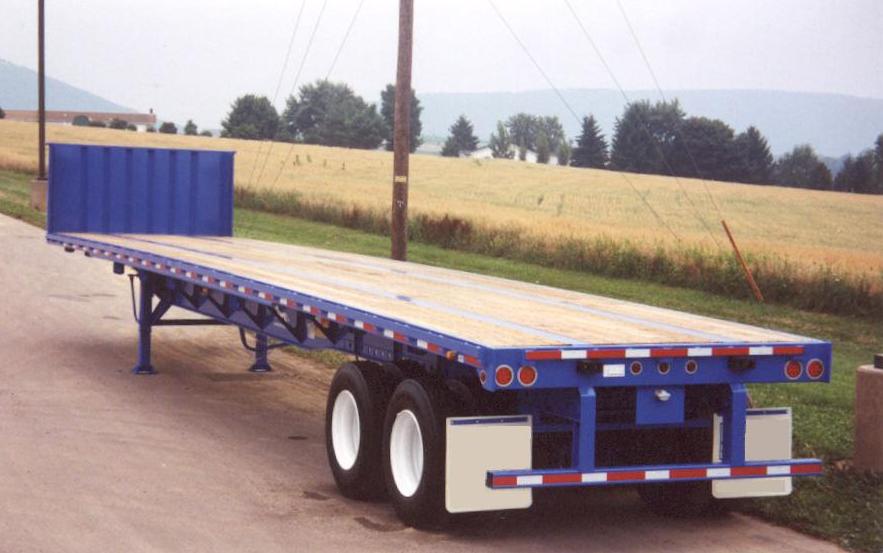

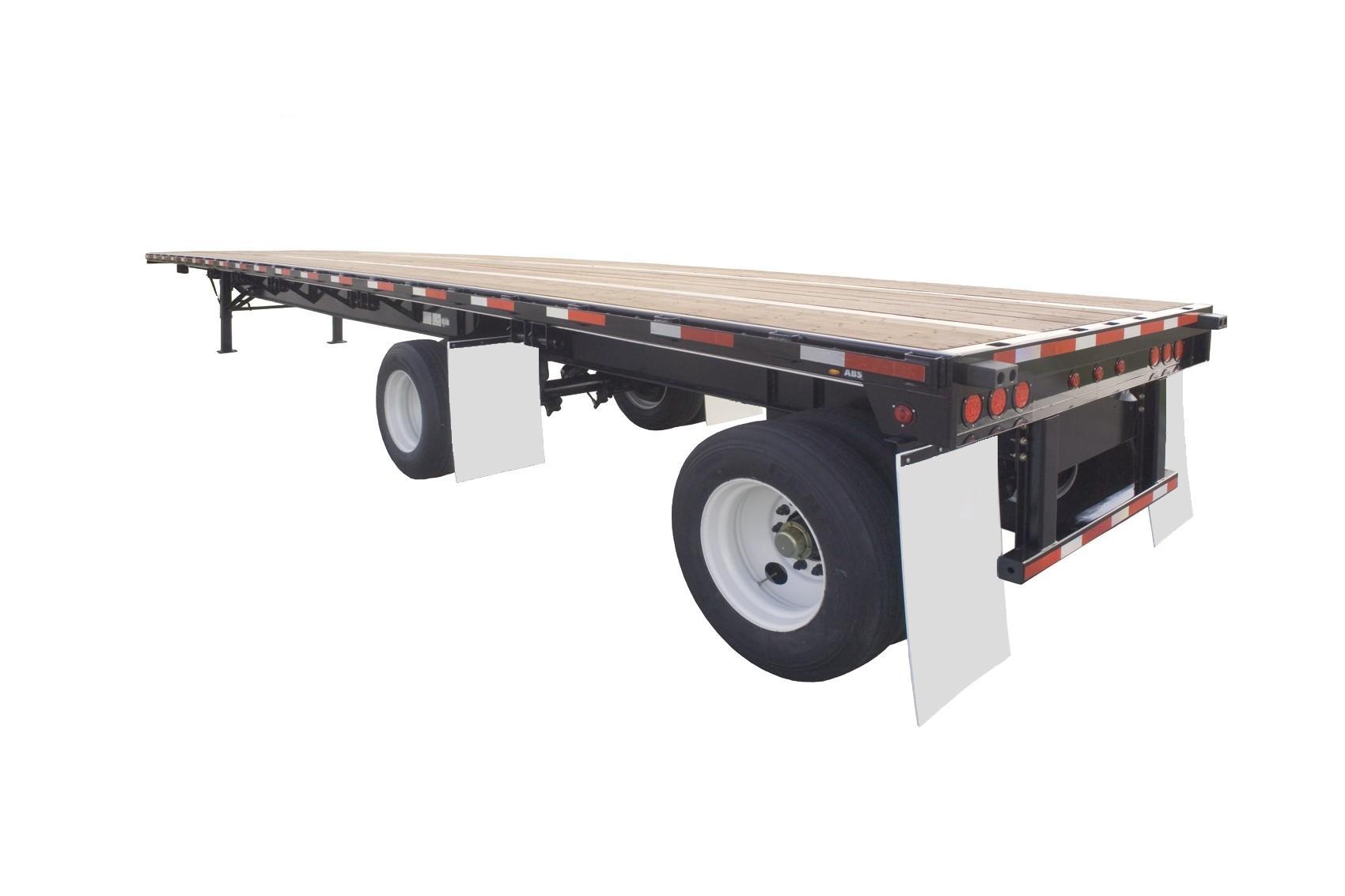

A variety of configurations and options are available to meet your specific requirements. Steel flatbeds come in standard lengths of 48 foot and 53 foot with either tandem or spread axle configurations. We can also build them in 40 foot and 45 foot lengths and with three axles. Options include Moffit kit, aluminum wheels, toolboxes, load-securing devices such as chain tie-downs, bulkheads, and lift axles.
| 48 Foot Steel Flatbed Specifications | |
| Overall Length: | 48' |
| Overall Width: | 102" |
| King Pin Location: | 36" |
| Coupler Height: | 48” |
| Main Rails: | Fabricated hi-tensile steel I-beams, precambered, and with 100 Ksi flanges |
| Cross Members: | 4" 80 Ksi steel I-beam on 16" centers |
| Side Rails: | 6" structural steel channel |
| Rub Rails: | 2.5" rolled form steel with pipe spools between stake pockets on 24" centers |
| Flooring: | Apitong |
| Landing Gear: | Two-speed mechanism and square leg tubing with 10” x 10” low profile sand shoes |
| Suspension | Spring Ride or Air ride |
| Axles: | Two axles of 5” round and 25,000 lb beam capacity each; automatic type slack adjusters |
| Axle Centers: | 49" (Tandem) or 122" (Spread) |
| Brake System: | Meritor Wabco 2S/1M Anti-lock Braking System; 30/30 Spring brake chambers |
| Tires / Wheels | Radial tires on 10-hole disc wheels |
| Electrical | 12 Volt with plug type connectors, 7-way plug, sealed wire harnesses and lights |
| Paint: | Commercial sandblast, primer, and high quality paint system |
| Other: | Conspicuity Tape, Bumpers, and Mud Flaps |
| 53 Foot Steel Flatbed Specifications | |
| Overall Length: | 53' |
| Overall Width: | 102" |
| King Pin Location: | 36" |
| Coupler Height: | 48” |
| Main Rails: | Fabricated hi-tensile steel I-beams, precambered, and with 100 Ksi flanges |
| Cross Members: | 4" 80 Ksi steel I-beam on 16" centers |
| Side Rails: | 6" structural steel channel |
| Rub Rails: | 2.5" rolled form steel with pipe spools between stake pockets on 24" centers |
| Flooring: | Apitong Wood |
| Landing Gear: | Two-speed mechanism and square leg tubing with 10” x 10” low profile sand shoes |
| Suspension | Air ride |
| Axles: | Two axles of 5” round and 25,000 lb beam capacity each; automatic type slack adjusters |
| Axle Centers: | 122" (Spread) |
| Brake System: | Meritor Wabco 2S/1M Anti-lock Braking System; 30/30 Spring brake chambers |
| Tires / Wheels | Radial tires on 10-hole disc wheels |
| Electrical | 12 Volt with plug type connectors, 7-way plug, sealed wire harnesses and lights |
| Paint: | Commercial sandblast, primer, and high quality paint system |
| Other: | Conspicuity Tape, Bumpers, and Mud Flaps |
