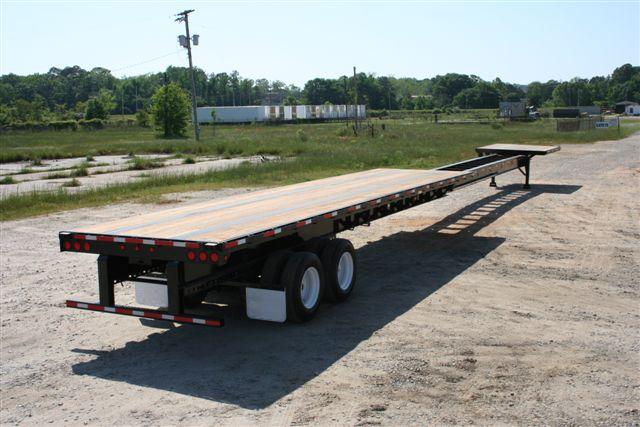

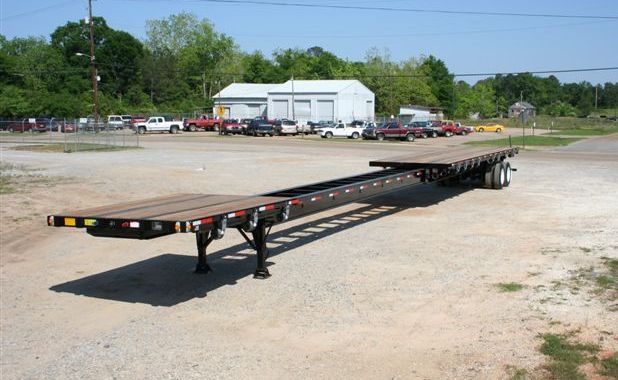

48-80 Foot Extendable Flatbed Trailer
This extendable flatbed adjusts trailer length from 48 to 80 foot via air operated pins and rollers for greater convenience and smoother operation. Stop positions in 5 foot increments and suspension slides. The main rails have a capacity of 80,000 lb evenly distributed and a camber built in to eliminate sagging under heavy loads. For heavier applications, a 100,000lb frame rating package can be offered.
48-80 Foot Extendable Flatbed Specifications
Overall Length:

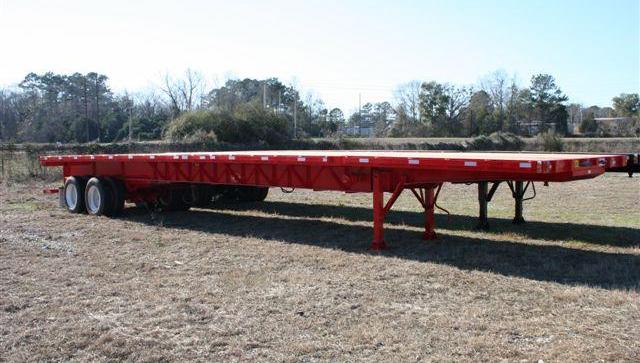

48' Closed; 80' Open
Overall Width:
102"
King Pin Location:
24"
Coupler Height:
48”
Main Rails:
Fabricated hi-tensile steel I-beams on inner and outer beams
Cross Members:
4" steel I-beam on 12" centers
Side Rails:
6" structural steel channel
Rub Rails:
2.5" rolled form steel with pipe spools between stake pockets on 24" centers
Flooring:
Apitong
Landing Gear:
Two-speed mechanism and square leg tubing with 10” x 10” low profile sand shoes
Suspension
Spring Ride or Air ride

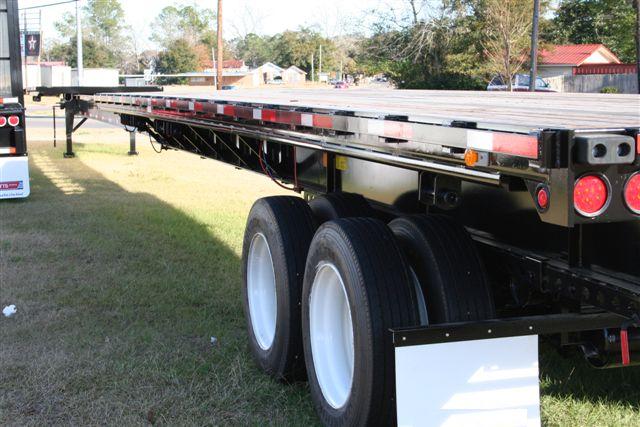

Axles:
Two axles of 5” round and 25,000 lb beam capacity each; automatic type slack adjusters
Axle Centers:
49"
Brake System:
Meritor Wabco 2S/1M Anti-lock Braking System; 30/30 Spring brake chambers
Tires / Wheels
Radial tires on 10-hole disc wheels
Electrical
12 Volt with plug type connectors, 7-way plug, sealed wire harnesses and lights
Paint:
Commercial sandblast, primer, and high quality paint system
Other:
Conspicuity Tape, Bumpers, and Mud Flaps
