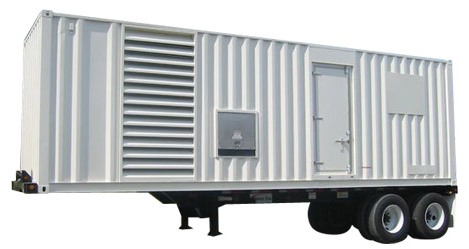

Power Generator Chassis

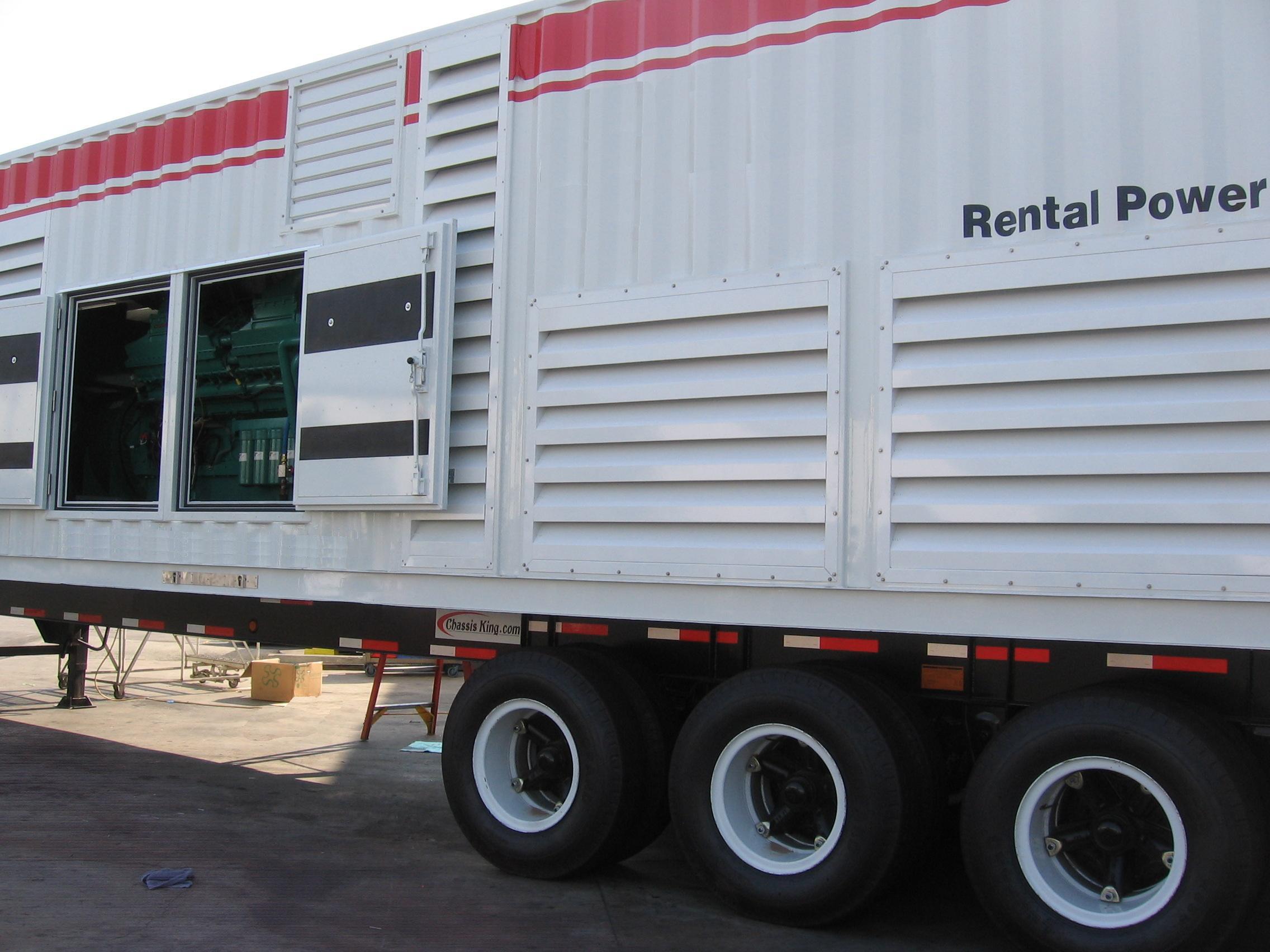

Whether your containerized genset is 20 ft, 30 ft, 40 ft or longer, we have the corresponding chassis size to go with it. Our generator chassis can even handle high cubes and overweights.
Chassis is designed and built according to Association of American Railroads (AAR), Federal Motor Vehicle Safety Standards (FMVSS), International Standards Organization (ISO), American National Standards Institute (ANSI), Department of Transportation (DOT), American Bureau of Shipping (ABS), Society of Automotive Engineers (SAE), and Truck Trailer Manufacturers Association (TTMA) standards.
Chassis sizes range from the 20ft to 53ft. The frame and main fabricated parts are made from high strength steel. Some of the standard components include 11R22.5 tires on 10-hole disc wheels, spring suspension, antilock braking system (ABS), and two-speed landing legs. Lots of available upgrades from radials and air rides to paint color depending on container data.
Chassis can be stacked up to 5 high for power only transport

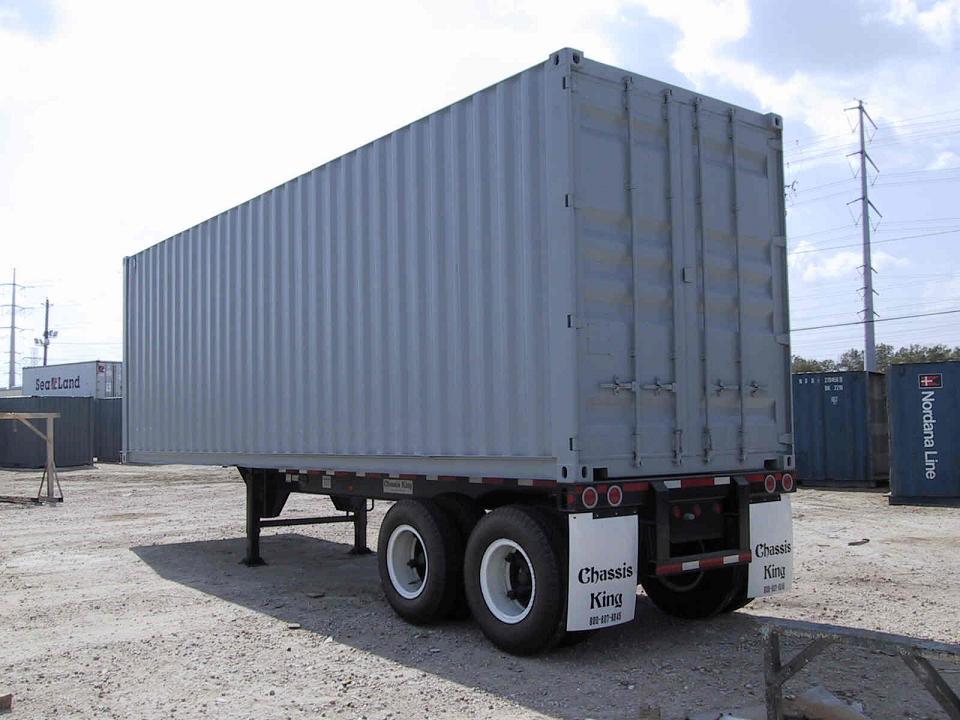

| 30 Foot Generator Chassis Specifications: | |
| Overall Length: | 30’-6” |
| Overall Width: | 96” |
| King Pin Location: | 30” from rear face of front bolster |
| Coupler Height: | 48” |
| Tare Weight: | 6,200 lbs |
| Main Rails: | Two hot rolled structural steel, ASTM-A572 Grade 50 “I” beams. Wide flange 12” in depth 19 lbs/ft. |
| Landing Gear: | Two-speed mechanism and square leg tubing with 10” x 10” low profile sand shoes |
| Suspension: | Hutch with Three Leaf Springs (11,000 lb capacity each) |
| Axles: | Two axles of 5” round and 22,500 lb beam capacity each; 16.5 x 7-inch Q brakes; automatic type slack adjusters |
| Brake System: | Meritor Wabco 2S/1M Anti-lock Braking System; 30/30 Spring brake chambers |
| Tires / Wheels | 10.00 x 20 tires on 5 spoke wheels |
| Electrical: | 12 Volt with plug type connectors, 7-way plug, sealed wire harnesses and lights |
| Twist Locks: | Cast steel to engage ISO corner castings |
| Paint: | Commercial sandblast, primer, and high quality paint system |
| Other: | Conspicuity Tape, Bumper, 24 x 30 Mud Flaps |
