40 Foot Bombcart / Port Trailer

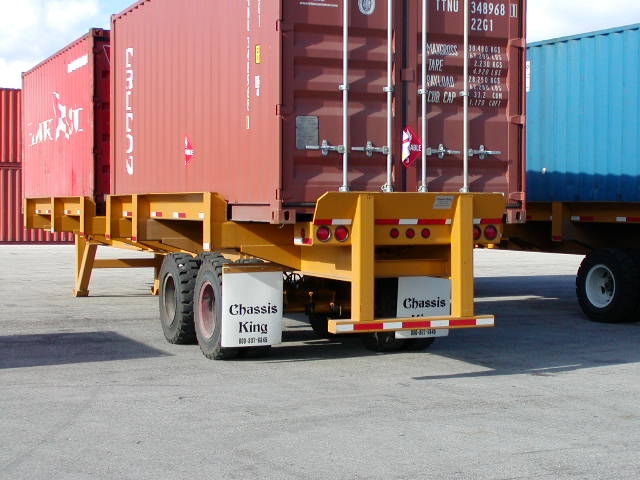

Heavy Duty cornerless chassis designed for transport around terminal of one 20’, twin 20’s, and one 40’ container. Retractable spacers keep the separation between the twin 20’s when loaded onto chassis. Long tapered side guides help crane operator position containers accurately while the corner-less style simplifies the task.
Bomb cart chassis is designed and built according to Association of American Railroads (AAR), Federal Motor Vehicle Safety Standards (FMVSS), International Standards Organization (ISO), American National Standards Institute (ANSI), Department of Transportation (DOT), American Bureau of Shipping (ABS), Society of Automotive Engineers (SAE), and Truck Trailer Manufacturers Association (TTMA) standards.
Single point suspension, 11R22.5 on 10-hole hub piloted disc wheels, non-ABS, retractable spacers, and fixed length landing legs are all standard. Options include four point suspension, solid rubber tires, and pneumatically activated spacers.
| 40 ft Bombcart / Port Trailer Specifications: | |
| Overall Length: | 42' |
| Overall Width: | 112” |
| King Pin Location: | 21" |
| Coupler Height: | 48” |
| Tare Weight: | 19,000 lbs |
| Main Rails: | Two hot rolled structural steel, ASTM-A572 Grade 50 “I” beams. Wide flange 21” in depth 57 lbs/ft |
| Container Guides: | Front, rear and side, sloped and 3/8" thick |
| Container Stops: | Spring loaded spacers/stops for the twin 20's and the 40' containers |
| Landing Gear: | Non-telescoping 3/8” wall tubing; height adjustable via bolts; 10" x 10" sand shoes |
| Suspension: | Hutch 900 Single Point suspension rated at 60,000 lbs |
| Axles: | Two axles of 5" round and 25,000 lb beam capacity each; 16.5 x 7-inch Q brakes; automatic type slack adjusters |
| Brake System: | 30/30 Spring brake chambers, No ABS |
| Tires / Wheels: | 11R22.5 on 10-hole disc wheels |
| Electrical: | 12 Volt with plug type connectors, 7-way plug, sealed wire harnesses and lights |
| Twist Locks: | Optional |
| Paint: | Commercial sandblast, primer, and high quality paint system |
| Other: | Conspicuity Tape, Bumper, 24 x 30 Mud Flaps |
