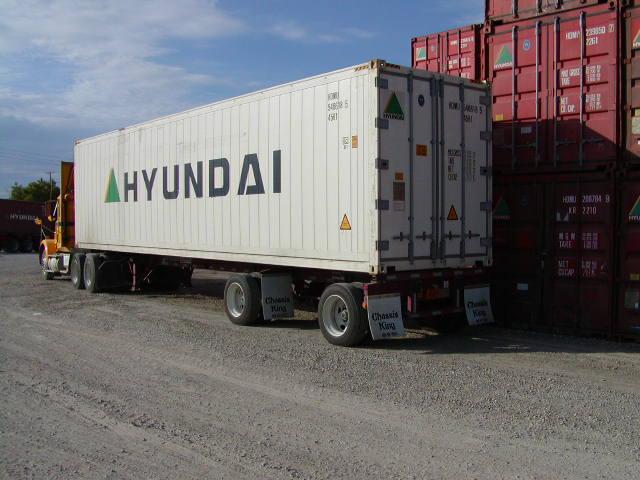

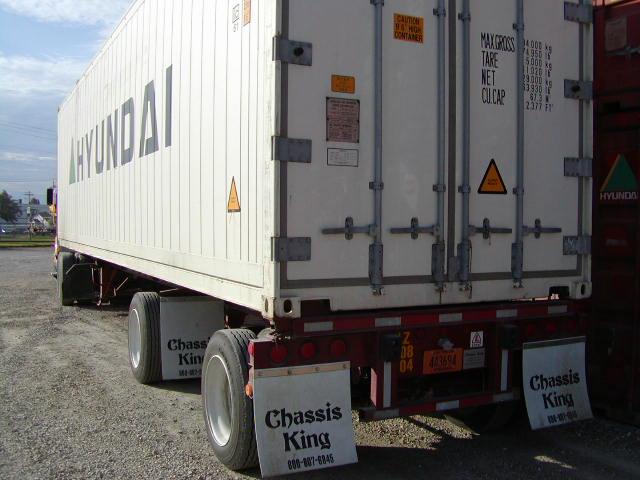

40 Foot Spread Axle Container Chassis
The 40 foot spread axle model would be suggested for long hauls and highway use. Not recommended for city use where tight turns scuff tires.
Chassis are available in both spring ride and air ride suspension models. Can be stacked up to 5 high for power only transport.
40 Foot Spread Axle Chassis Specifications:
Overall Length:
40’-10”
Overall Width:
96”
King Pin Location:
30” from rear face of front bolster
Coupler Height:
48”
Tare Weight:
6,600 lbs
Main Rails:
Two hot rolled structural steel, ASTM-A572 Grade 50 “I” beams. Wide flange 12” in depth 19 lbs/ft.
Landing Gear:
Two-speed mechanism and square leg tubing with 10” x 10” low profile sand shoes
Suspension:
Hutch with Three Leaf Springs (11,000 lb capacity each)
Axles:
Two axles of 5” round and 22,500 lb beam capacity each; 16.5 x 7-inch Q brakes; automatic type slack adjusters
Axle Centers:
109"
Brake System:
Meritor Wabco 2S/1M Anti-lock Braking System; 30/30 Spring brake chambers
Tires / Wheels
10.00 x 20 tires on 5 spoke wheels
Electrical:
12 Volt with plug type connectors, 7-way plug, sealed wire harnesses and lights
Twist Locks:
Cast steel to engage ISO corner castings
Paint:
Commercial sandblast, primer, and high quality paint system
Other:
Conspicuity Tape, Bumper, 24 x 30 Mud Flaps
