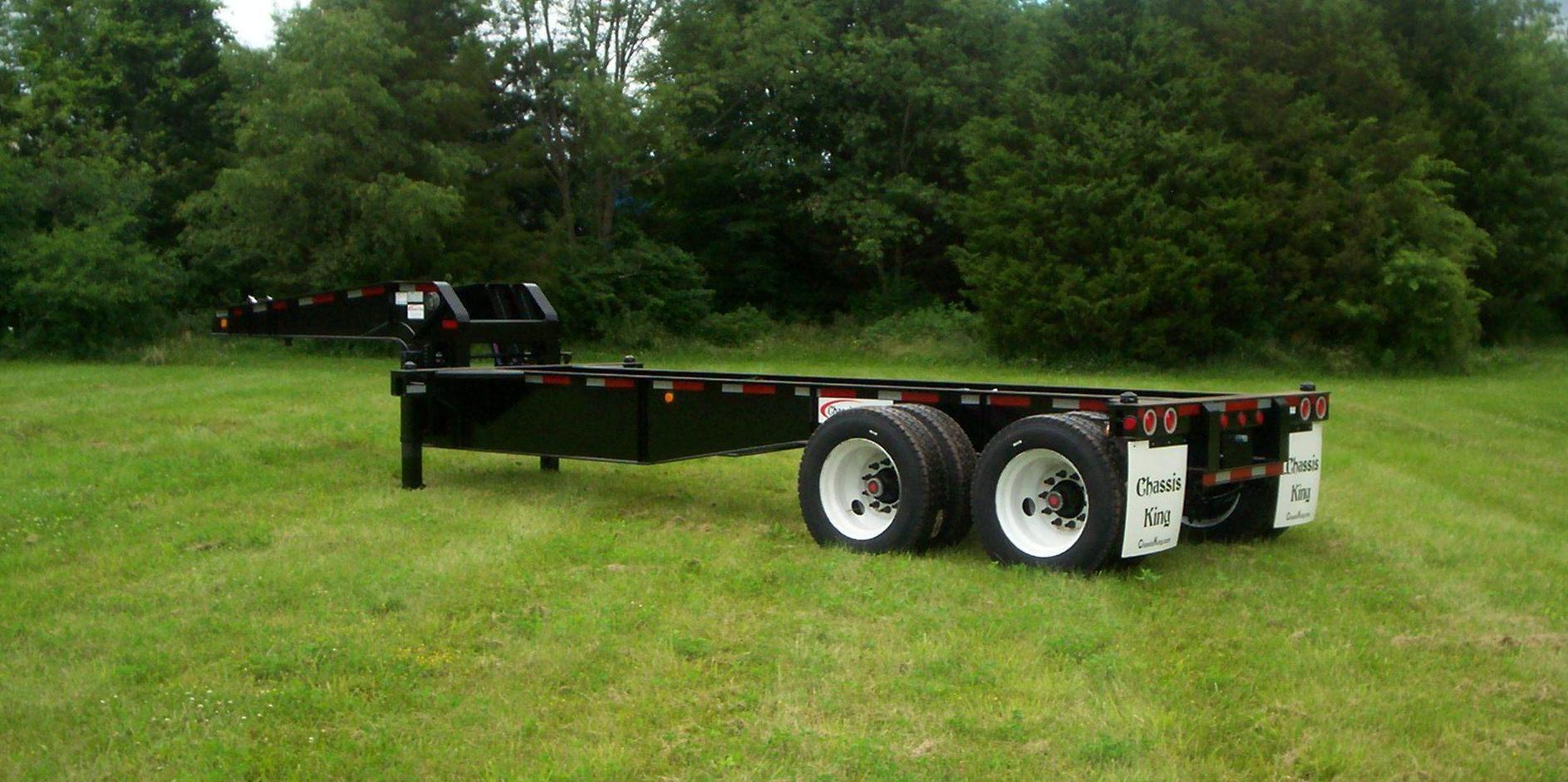

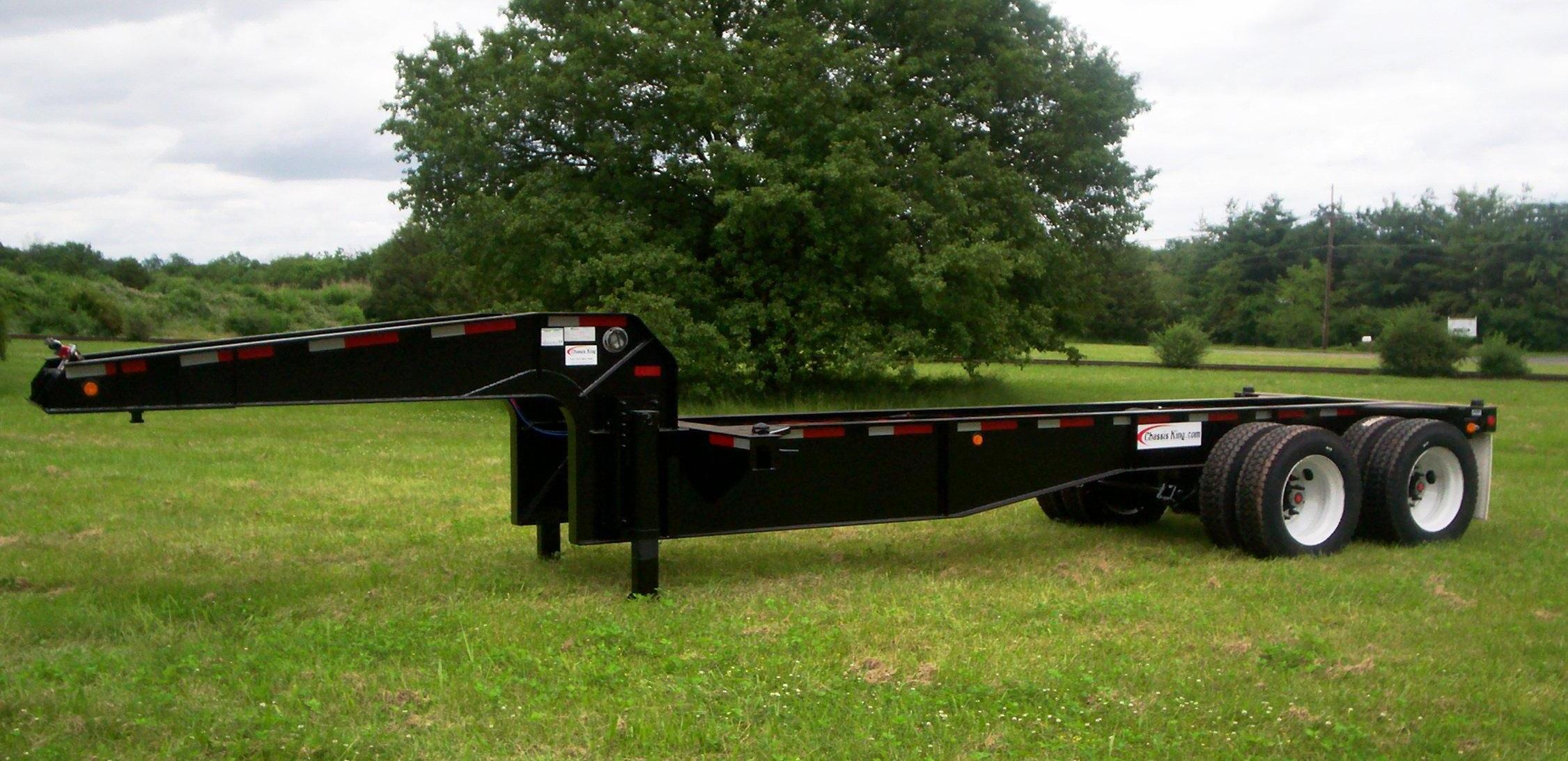

31 Foot Drop Frame Chassis

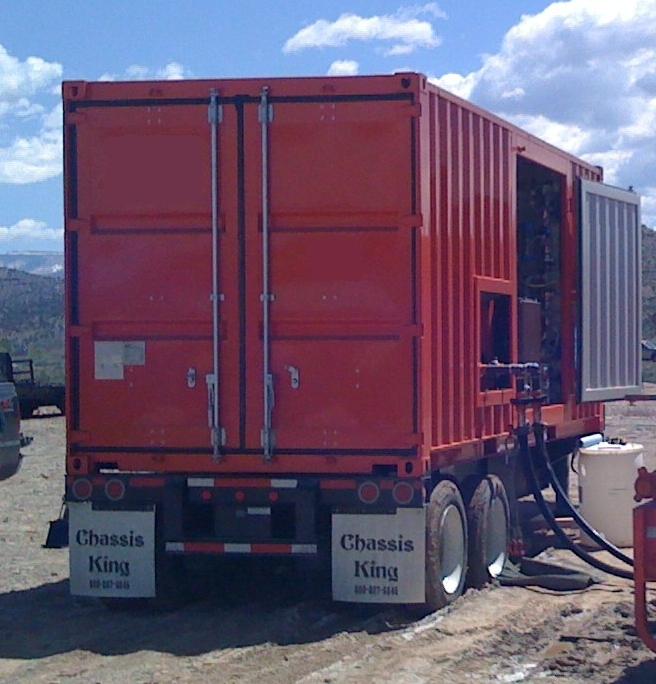

The 31ft drop frame chassis carries one (1) ISO 20 foot container rear of the drop. Used for transport of 20 foot containers with a height greater than 8'-6" (ie. high cubes). Another application is when you need your deck height lower than a standard 20 foot chassis.
Chassis is designed and built according to Association of American Railroads (AAR), Federal Motor Vehicle Safety Standards (FMVSS), International Standards Organization (ISO), American National Standards Institute (ANSI), Department of Transportation (DOT), American Bureau of Shipping (ABS), Society of Automotive Engineers (SAE), and Truck Trailer Manufacturers Association (TTMA) standards.
Spring suspension, 255/70R22.5 on 10-hole hub piloted disc wheels, and ABS are standard. Options include air ride.
Chassis can be stacked up to 3 high for power only transport
| 31 Foot Drop Frame Chassis Specifications: | |
| Overall Length: | 31' |
| Overall Width: | 96” |
| King Pin Location: | 18" |
| Coupler Height: | 48" |
| Rear Deck Height: | 40” |
| Tare Weight: | 7,400 lbs |
| Main Rails: | High strength steel main beams |
| Landing Gear: | Two-speed mechanism and square leg tubing with 10” x 10” low profile sand shoes |
| Suspension: | Hutch with Three Leaf Springs (11,000 lb capacity each) |
| Axles: | Two axles of 5” round and 22,500 lb beam capacity each; 16.5 x 7-inch Q brakes; automatic type slack adjusters |
| Brake System: | Meritor Wabco 2S/1M Anti-lock Braking System; 30/30 Spring brake chambers |
| Tires / Wheels | 255/70R22.5 tires on 10-hole disc wheels |
| Tandem Location: | 52" from the rear |
| Electrical: | 12 Volt with plug type connectors, 7-way plug, sealed wire harnesses and lights |
| Twist Locks: | Cast steel to engage ISO corner castings |
| Paint: | Commercial sandblast, primer, and high quality paint system |
| Other: | Conspicuity Tape, Bumper, 24 x 30 Mud Flaps |
