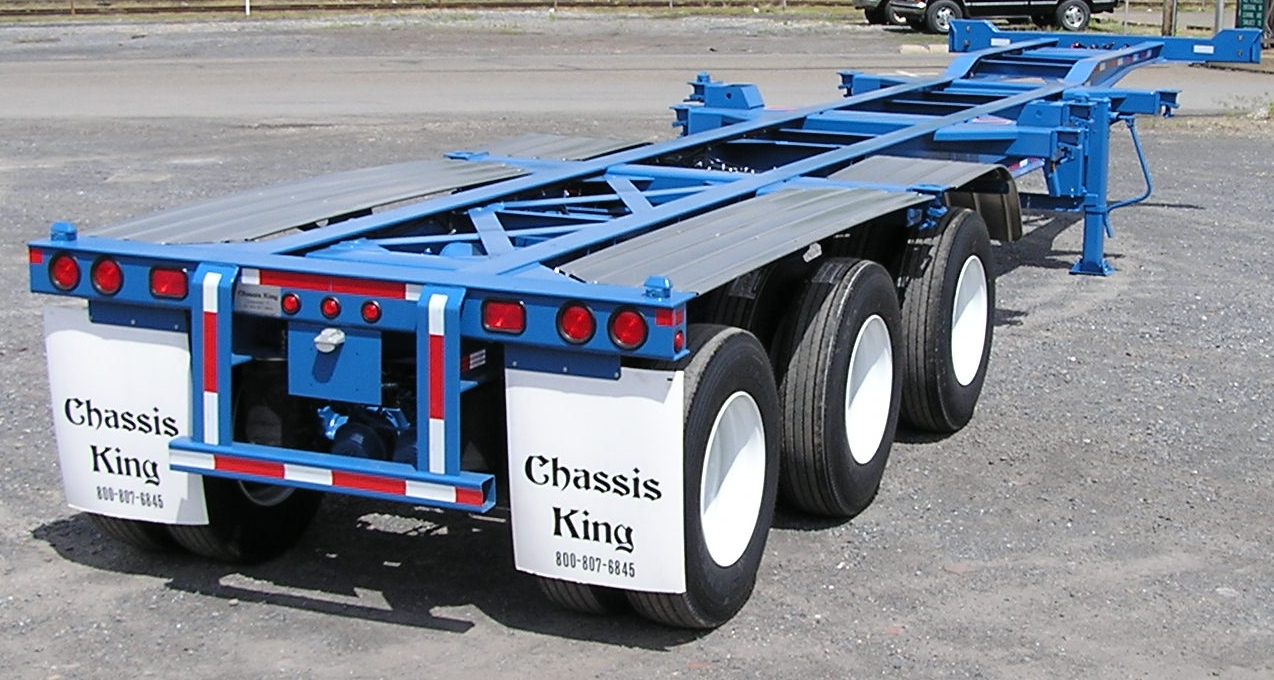

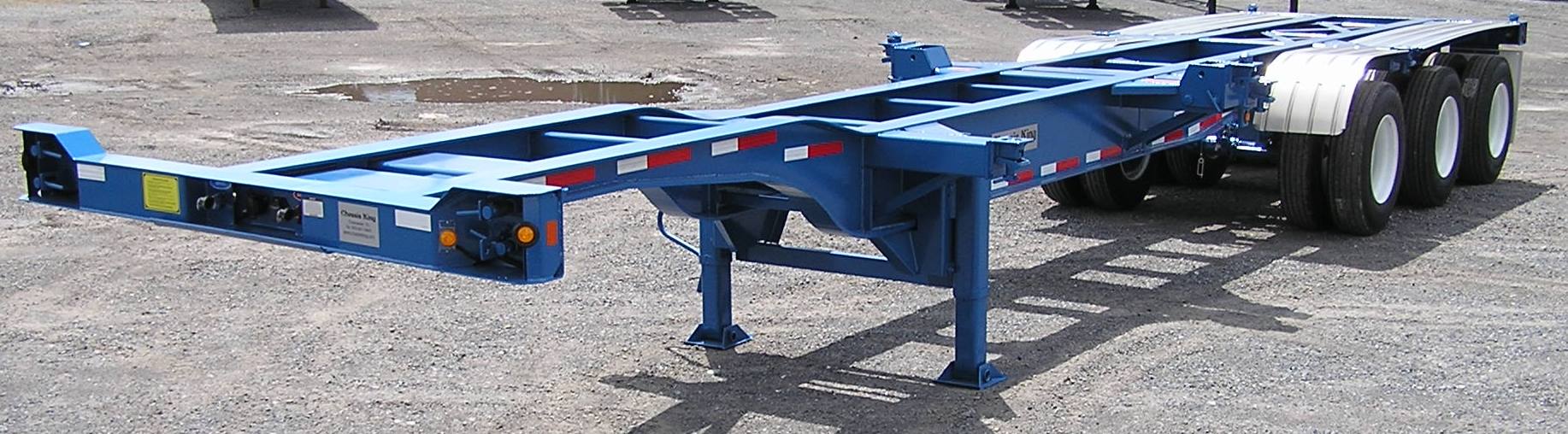

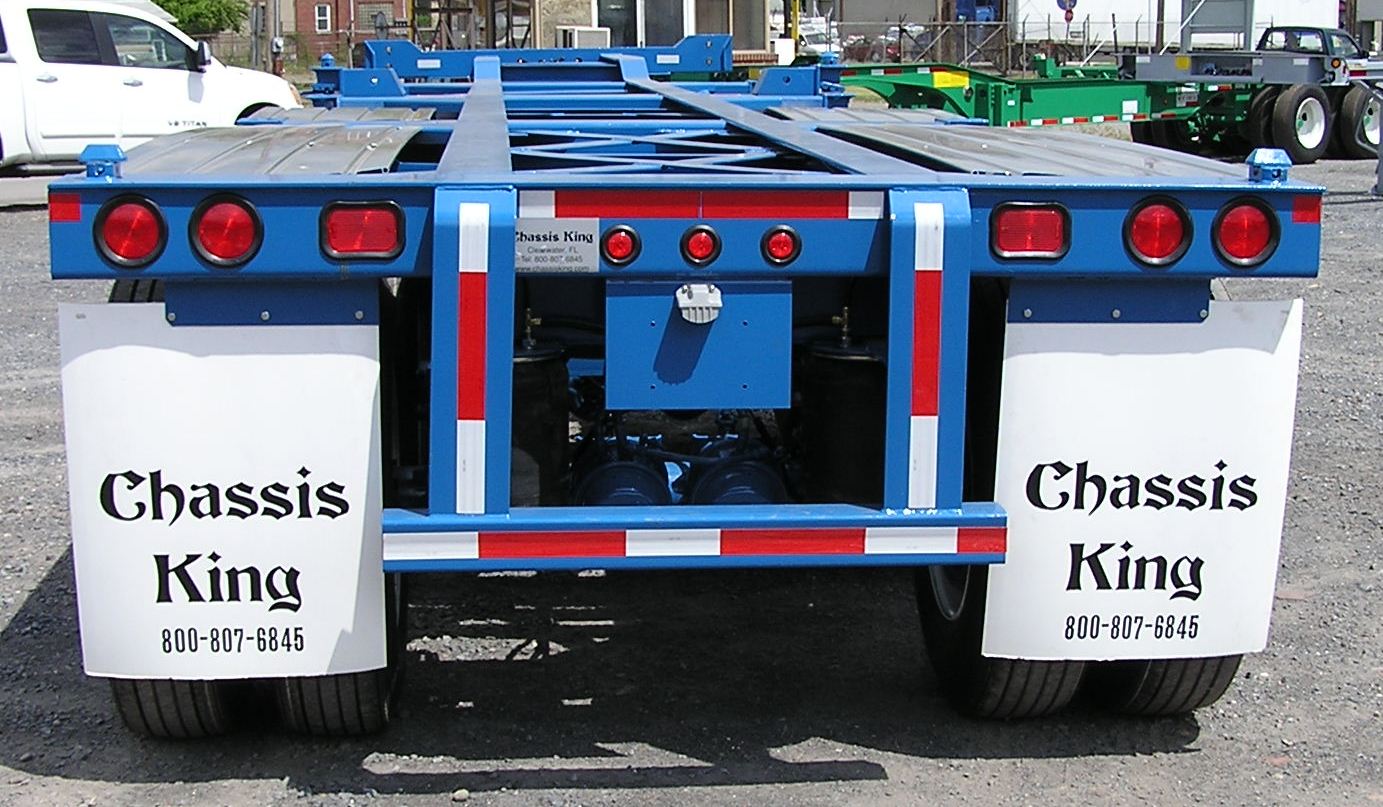

40 Foot Gooseneck Tri-Axle 12 Pin Chassis
40ft gooseneck tri-axle chassis capable of carrying (1) 40ft high cube container, two empty 20ft containers or (1) loaded 20ft container in the center position.
Chassis is designed and built according to Association of American Railroads (AAR), Federal Motor Vehicle Safety Standards (FMVSS), International Standards Organization (ISO), American National Standards Institute (ANSI), Department of Transportation (DOT), American Bureau of Shipping (ABS), Society of Automotive Engineers (SAE), and Truck Trailer Manufacturers Association (TTMA) standards.
Spring suspension, 11R22.5 tires on 10-hole hub piloted disc wheels, and ABS are standard. Options include air ride.
Chassis can be stacked up to 4 high for power only transport
| 40 Foot GN 12-Pin Tri-Axle Specifications: | |
| Overall Length: | 40’-8” |
| Overall Width: | 96” |
| King Pin Location: | 36" |
| Coupler Height: | 48” |
| Tare Weight: | 10,800 lbs |
| Main Rails: | Fabricated high strength steel main beams |
| Landing Gear: | Two-speed mechanism and square leg tubing with 10” x 10” low profile sand shoes |
| Suspension: | Hutch with Three Leaf Springs (11,000 lb capacity each) |
| Axles: | Three axles of 5” round and 22,500 lb beam capacity each; 16.5 x 7-inch Q brakes; automatic type slack adjusters |
| Brake System: | Meritor Wabco 2S/1M Anti-lock Braking System; 30/30 Spring brake chambers |
| Tires / Wheels | 11R22.5 tires on 10-hole disc wheels |
| Electrical: | 12 Volt with plug type connectors, 7-way plug, sealed wire harnesses and lights |
| Twist Locks: | Cast steel to engage ISO corner castings |
| Paint: | Commercial sandblast, primer, and high quality paint system |
| Other: | Conspicuity Tape, Bumper, 24 x 30 Mud Flaps |
