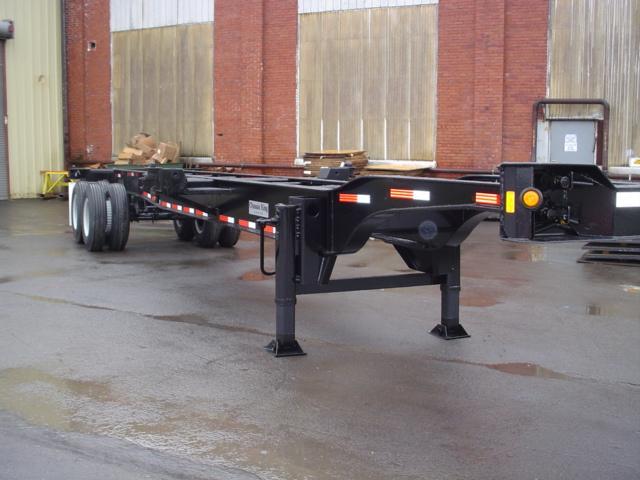

40 Foot Gooseneck 8 Pin Chassis
A gooseneck combination chassis of fixed length designed for the stevedoring and transportation of two 20' or one 40' (standard or high cube) ISO containers.
Chassis is designed and built according to Association of American Railroads (AAR), Federal Motor Vehicle Safety Standards (FMVSS), International Standards Organization (ISO), American National Standards Institute (ANSI), Department of Transportation (DOT), American Bureau of Shipping (ABS), Society of Automotive Engineers (SAE), and Truck Trailer Manufacturers Association (TTMA) standards.
Spring suspension and 10 x 20 tires on 5 spoke wheels are standard. Options include 11R22.5 tires on 10-hole hub piloted disc wheels and air ride.

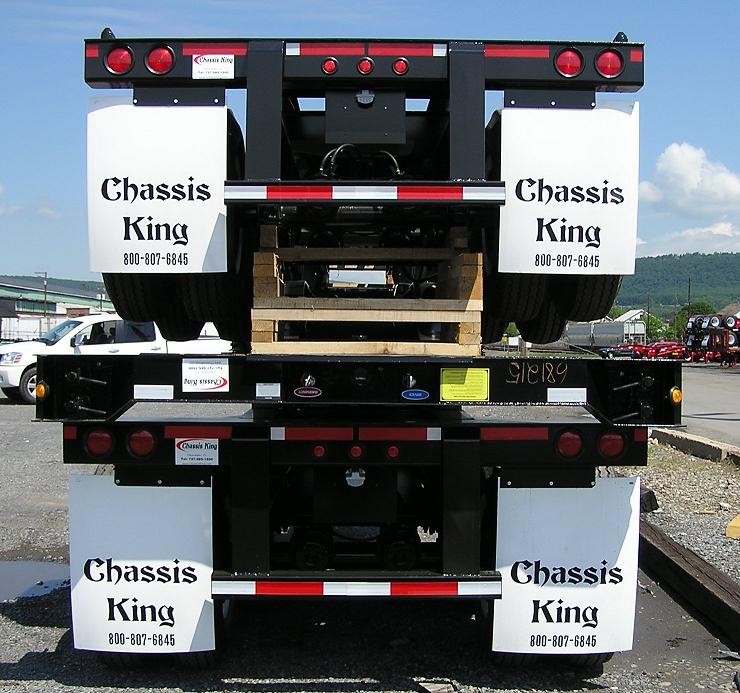

Chassis can be stacked up to 4 high for power only transport
| 40 Foot GN 8-Pin Specifications: | |
| Overall Length: | 40’-6” |
| Overall Width: | 96” |
| King Pin Location: | 30.5" |
| Coupler Height: | 48” |
| Tare Weight: | 10,100 lbs |
| Main Rails: | Fabricated high strength steel main beams |
| Landing Gear: | Two-speed mechanism and square leg tubing with 10” x 10” low profile sand shoes |
| Suspension: | Hutch with Three Leaf Springs (11,000 lb capacity each) |
| Axles: | Two axles of 5” round and 22,500 lb beam capacity each; 16.5 x 7-inch Q brakes; automatic type slack adjusters |
| Brake System: | Meritor Wabco 2S/1M Anti-lock Braking System; 30/30 Spring brake chambers |
| Tires / Wheels | 10.00 x 20 tires on 5 spoke wheels |
| Electrical: | 12 Volt with plug type connectors, 7-way plug, sealed wire harnesses and lights |

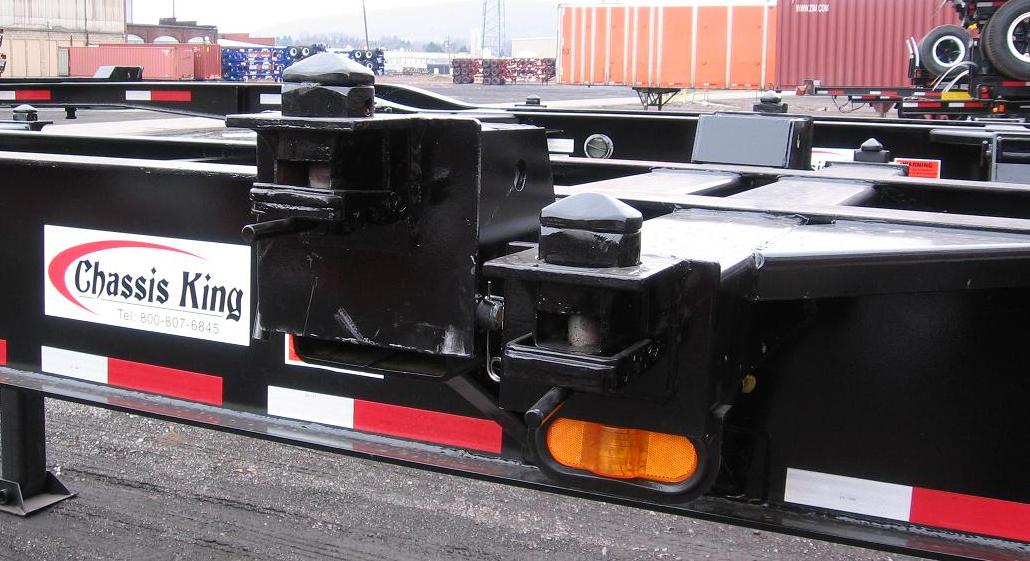

| Twist Locks: | Cast steel to engage ISO corner castings |
| Paint: | Commercial sandblast, primer, and high quality paint system |
| Other: | Conspicuity Tape, Bumper, 24 x 30 Mud Flaps |
